| สถานที่กำเนิด: | มณฑลซานตงจีน |
|---|---|
| ชื่อแบรนด์: | SH |
| ได้รับการรับรอง: | ISO9001, CE |
| หมายเลขรุ่น: | APN-1300, SHDL-1300, PQ1300-4 ฯลฯ |
| เอกสาร: | wood pallet nailing machine...ne.pdf |
| จำนวนสั่งซื้อขั้นต่ำ: | เครื่องตอกไม้พาเลท 1 ชุด |
| ราคา: | US $4,800 - 21,500 / Set |
| รายละเอียดการบรรจุ: | บรรจุโครงเหล็กหรือบรรจุ luo |
| เวลาการส่งมอบ: | ภายใน 15 วัน |
| เงื่อนไขการชำระเงิน: | T/T หรือ L/C ที่เห็น, Western Union |
| สามารถในการผลิต: | 1,000 ชุด / ปี |
| ชื่อ: | สายการผลิตพาเลทอัตโนมัติ | ความจุ: | 50-80พาเลท/ชั่วโมง |
|---|---|---|---|
| ความยาวพาเลทไม้: | 700-1300มม | ความกว้างของพาเลทไม้: | 800-1300 มม. |
| โหมดการทำงาน: | การป้อนและการซ้อนอัตโนมัติ | ชนิดเล็บ: | เล็บขด |
| บริการหลังการขาย: | การสนับสนุนด้านเทคนิควิดีโอการตรวจจับอัจฉริยะระยะไกลฟรี | รับประกัน: | 1 ปี |
| เครื่องพ่นสี: | พ่นพลาสติกเพื่อป้องกันการเกิดสนิม | คำสำคัญ: | เครื่องตอกตะปูพาเลทไม้ การผลิตพาเลทมาตรฐานยุโรป |

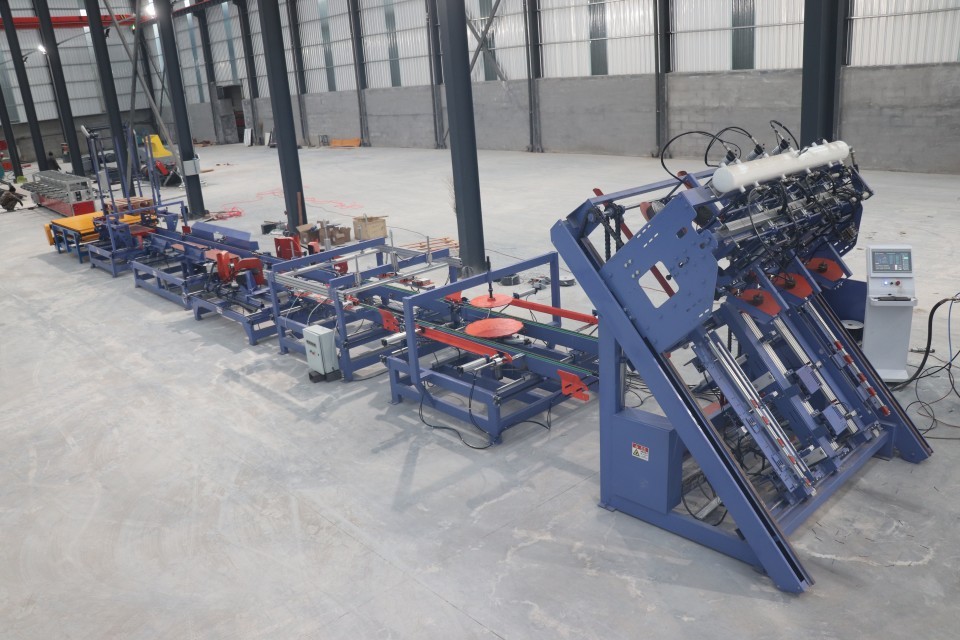

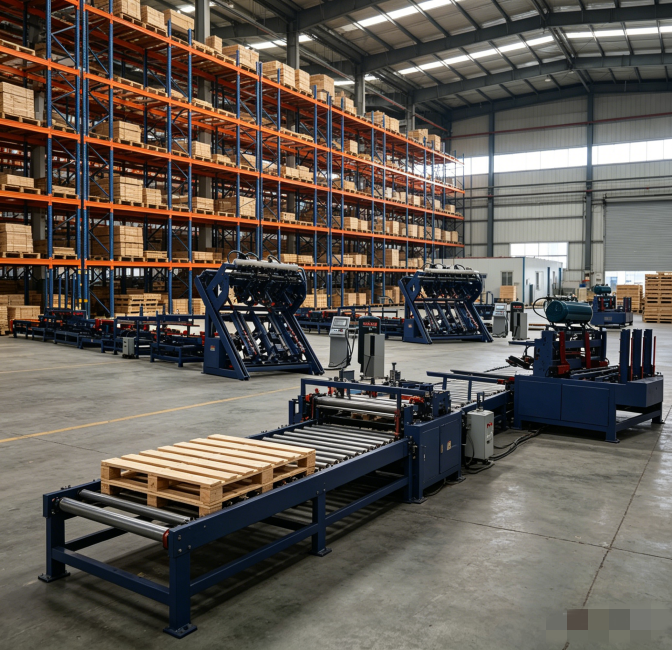

Maximize your facility's throughput with our Automatic EPAL Wood Pallet Production Line. Capable of producing 50-80 pallets per hour, this fully integrated system handles pallet sizes from 700mm to 1300mm. Features advanced block nailing, automated branding, and precision chamfering to meet strict European standards.
Our production line is an all-in-one solution designed for high-volume manufacturing of standard EPAL and custom wooden pallets.
Automatic Pallet Block Nailing Machine: High-precision placement and fastening of support blocks.
Automatic Pallet Nailing Machine: Industrial-grade nailing for top and bottom decks.
Pallet Rotary & Turning Machines: 180° and 90° flipping for dual-sided processing.
Pallet Branding Machine: Automatic heat stamping of EPAL/EUR logos and IPPC markings.
Pallet Corner Cutting & Chamfer Machine: Precision trimming for safety and easy handling.
Pallet Palletizer & Conveyor System: Automated stacking and transport to minimize manual labor.
Production Capacity: 50 - 80 pallets / hour.
Pallet Length: 700mm – 1300mm.
Pallet Width: 800mm – 1300mm.
Compliance: Designed for EPAL European Standard production.
1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | CN70*3Stanley BOSTITCH Stitch CN70*3 |
| Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.5KW Servomotor |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |
2,Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production effciency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
3.Wood pallet branding machine
| Model | LY-4 |
| Processing Size | 800-1300mm |
| Branding material | Copper/die steel |
| Air pressure | 0.8MPA |
| Branding speed | 4-8 s/time with pallet machine speed |
| Motor power | 0.75KW*2 |
| Number of branding | 1-6 pcs |
| Control mod | Pallet machine production line integrated supporting |
4. Pallet angle cutting machine
| Model | PQ1300-4 |
| Processing size | 800-1300mm |
| Circular saw blade diameter | 300mm |
| Motor power | 2.2KW*4 |
| Working mode | Automatic feed,Automatic Angle cutting |
| Weight | 350kg |
5. Wooden pallet palletizer
| Model | MD-1300Z |
| Processing size | 800-1300mm |
| Lift control | Hydraulic |
| Palletizing speed | 4-8 s/time |
| Model power | 5.2KW |
Labor Reduction: Fully automated cycle from raw wood to stacked pallets requires minimal operators.
Versatility: Adjustable settings to switch between different pallet sizes (700-1300mm).
Consistent Quality: Machine-driven nailing and branding ensure every pallet meets export regulations.
Durable Engineering: Heavy-duty components designed for 24/7 industrial operation.
Q1: How many operators are required to run this 50-80 pallet/hour line?
A: Thanks to the fully automatic integration of the nailing, branding, and stacking units, this line typically requires only 2 to 3 operators to oversee the PLC console and manage raw material loading.
Q2: Does this production line comply with EPAL and IPPC standards?
A: Yes. The line includes an automatic branding machine specifically designed for heat-stamping EPAL/EUR logos and the IPPC (ISPM 15) markings, ensuring your pallets are ready for international export.
Q3: Can the machine handle different pallet sizes without long downtime?
A: Absolutely. The line is adjustable for lengths and widths between 700mm and 1300mm. The quick-change settings allow you to switch production runs with minimal mechanical adjustment.
Q4: What type of nails and wood can be used?
A: The automatic nailing machine is compatible with standard coil nails. It is designed to work with softwoods and hardwoods commonly used in European pallet manufacturing, such as pine, spruce, or poplar.
