The American wood pallet automatic nailing machine is a state-of-the-art wood pallet production machine designed for high-speed, precision nailing and seamless automation. It is an essential part of the American wood pallet production line, offering unmatched efficiency, durability, and customization for various pallet types.
Equipped with advanced technology, this American nailing machine ensures fast, reliable, and labor-saving operation, making it ideal for large-scale pallet manufacturing.
Solenoid Valve & Cylinder: Taiwan AirTAC (smooth pneumatic performance)
Electrical Components: Chint (trusted safety & efficiency)
High-Speed Solenoid Valve: American MAC (ensures rapid nail gun response)
Automatic nailing, palletizing, and transmission – boosts productivity
Aviation quick plug – simplifies wiring and maintenance
Compatible with 3-beam & 4-beam pallets
5. Customizable & Space-Efficient Design
Hydraulic palletizing system – powerful and stable stacking
| Model | AWPN-1300 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 220V/ 2kw Servo motor |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Weight | 2000kg |

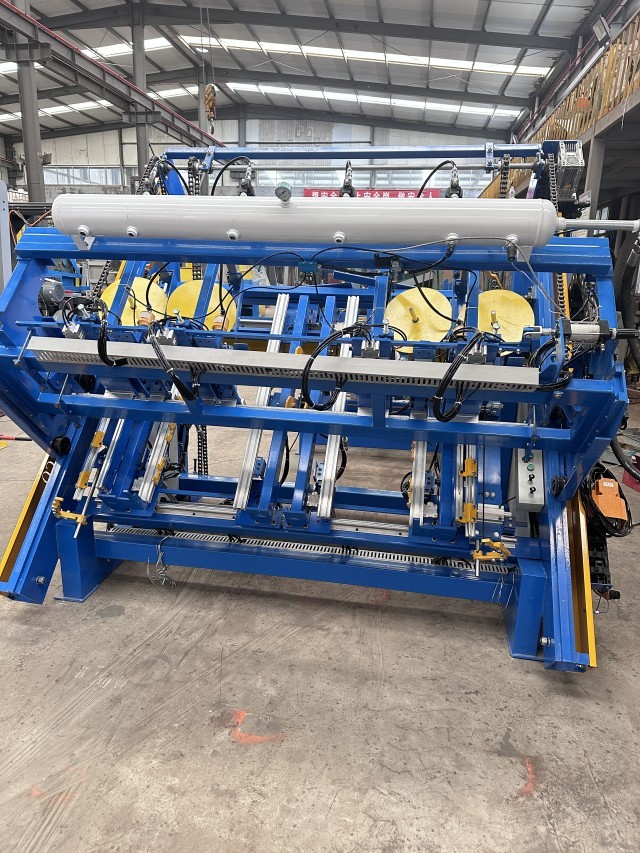

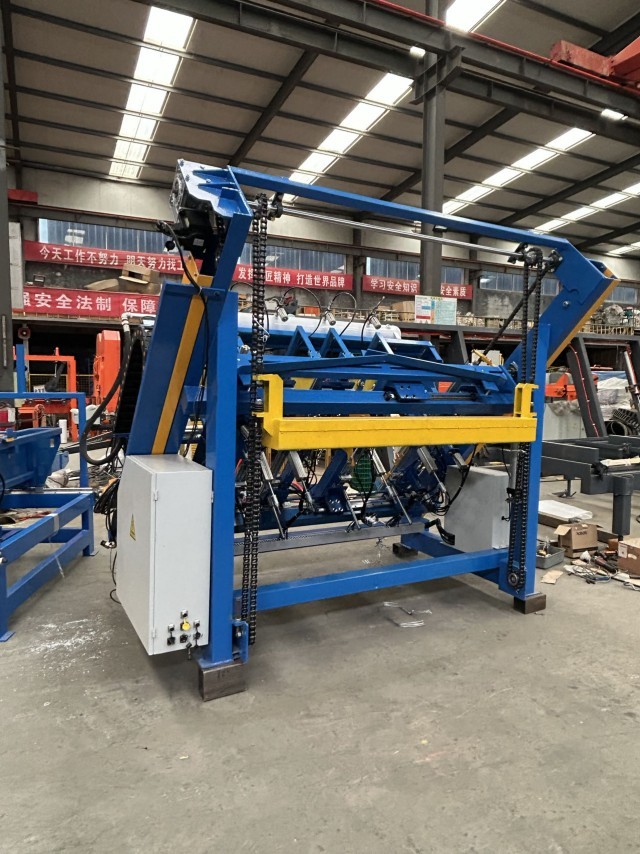

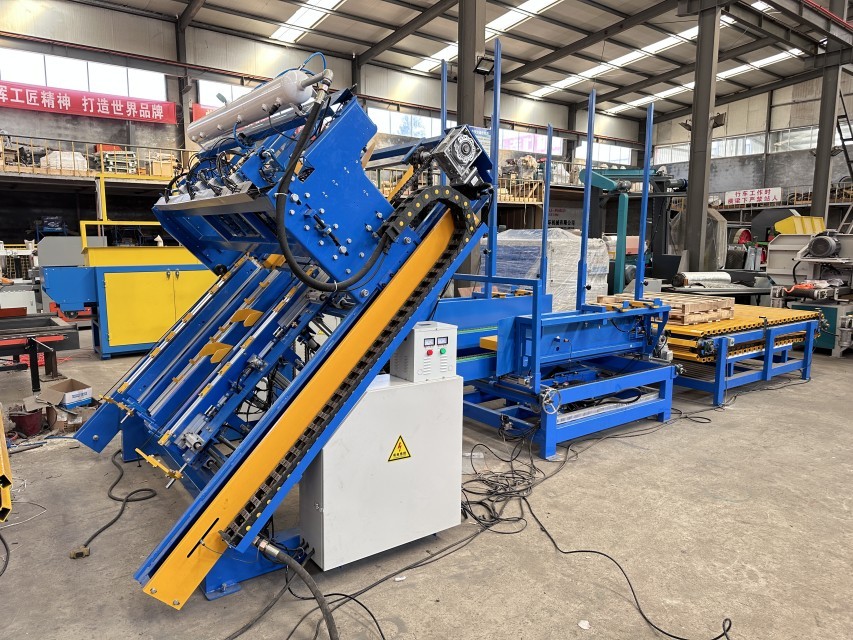

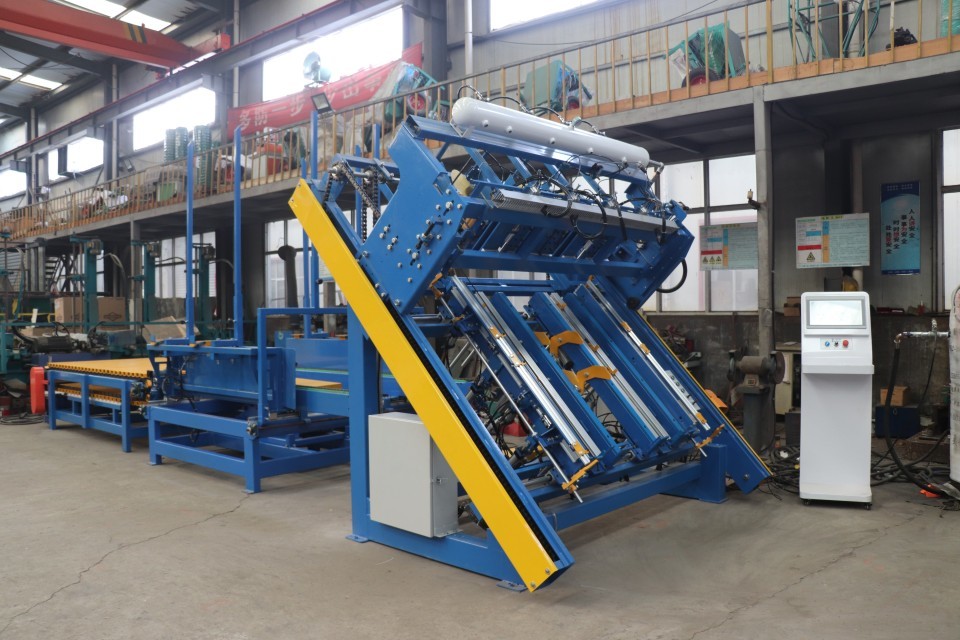

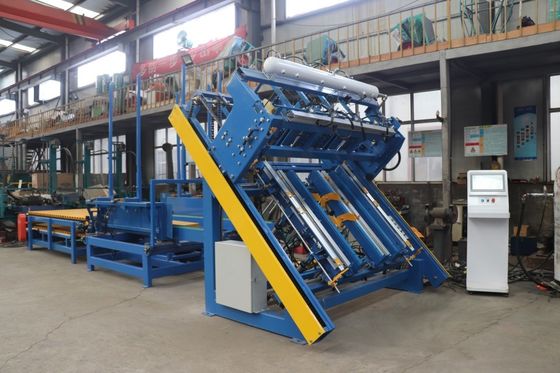

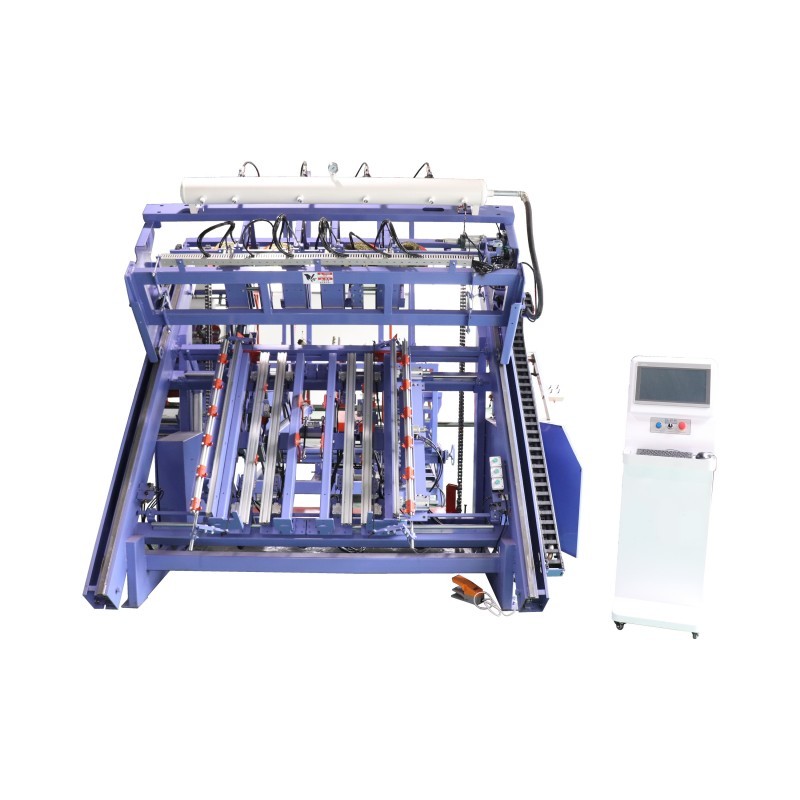

-- Detailed Image
Related Products
Pallet Notcher
| Model | WPN-1 | WPN-2 |
| Power | 15kw | 30kw |
| Material of knife | Alloy | Alloy |
| Capacity | 600-800pics/h | 1800pics/h |
| Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
| Wood pallet width: 160mm | Wood pallet width: max 90mm | |
| Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
| Slot depth: <45mm | Slot depth: <45mm | |
| Slot width: 200-230mm | Slot width: 200-230mm | |
| Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
| Machine wight | 400kg | 1000kg |
| Feature | Slot smooth, size consistent | |
| Apply for many kinds of slots, also can customized. | ||
Semi-Automatic wooden pallet nailing machine
| Model | AWPN-1500 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1700mm |
| Feeding mode | Hand pull |
| Palletizing mode | Automatic |
| Operational mode | Pneumatic operation |
| Voltage | 380V,480V or other |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Palletizing quantity | 10P |
| Weight | 2000kg |
Manual American Wood Pallet Nailing Table
| Model | PT-1600 | PT-3300 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1600mm | 900-3300mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production efficiency | 30-40pcs /h | 30-40pcs /h |
| Number of beams | 3p (customized) | 5p (customized) |
| Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
| Weight | 650kg | 950kg |
| Size | 2400*980*1900mm | 4000*980*1900mm |
Automatic Euro Wood Pallet Nailing Machine
✅ High Efficiency – Automated processes save time and labor
✅ Durability – Premium materials ensure long service life
✅ Flexibility – Produces various pallet types with easy adjustments
✅ Smart Control – Touch screen & remote capabilities for seamless operation
Ideal for pallet manufacturers, logistics companies, and warehouses, this American stringer beam nailing machine delivers unmatched performance in wood pallet production.
Upgrade your production line with this fully automated American wood pallet nailing machine – the perfect blend of precision, speed, and reliability. Whether you need standard or custom-sized pallets, this machine ensures high output with minimal manual intervention.
Contact us today to optimize your pallet manufacturing process!
